Steel Chains

Slat Top Steel Chains are used mainly in industries involving glass containers.

Slat Top Steel Chains are strong chains and suitable for applications running at high-speed.

Broken glass will not affect the function of the chain.

Ammeraal Beltech offers two ranges:

Classic  |  Plus+

High performance chains for demanding applications

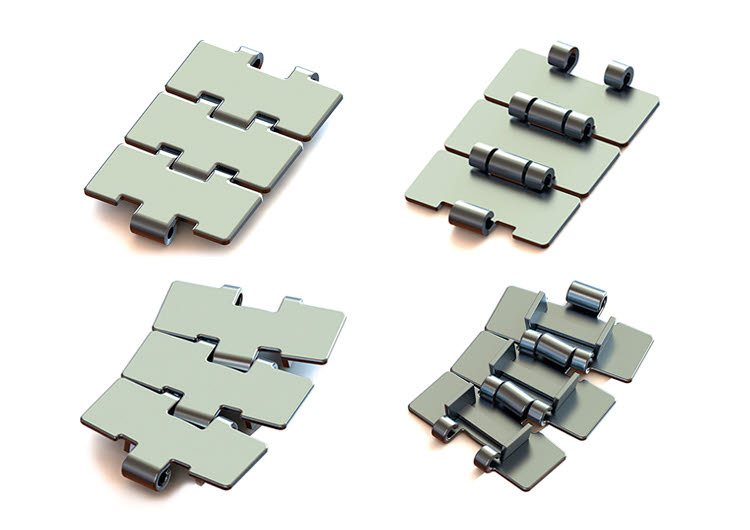

Classic Range

Features:

  • Hardened carbon Steel Chains
  • Ferritic stainless Steel Chains
  • Austenitic stainless Steel Chains

In addition to the chains featured here, we offer MTO (Made To Order) options.

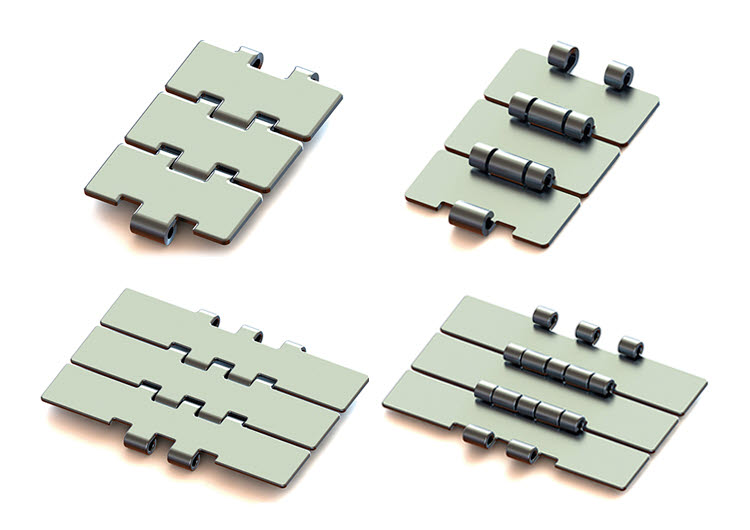

Straight Running

Single & Double Hinge Steel Chains

Suitable for soft drink and brewery bottling plants (also for glass bottles).

Mainly used for inline feeders and pressureless combiners.

Single Hinge

  • uni 810 is made of hardened carbon steel
  • uni 812 is made of ferritic stainless steel
  • uni 815 is made of austenitic stainless steel and is suitable for the Wine Industry

Double Hinge

Relatively high tensile strength which can be utilized for long conveyors or for large and heavy items.

  • uni 800 is made of hardened carbon steel
  • uni 802 is made of ferritic stainless steel

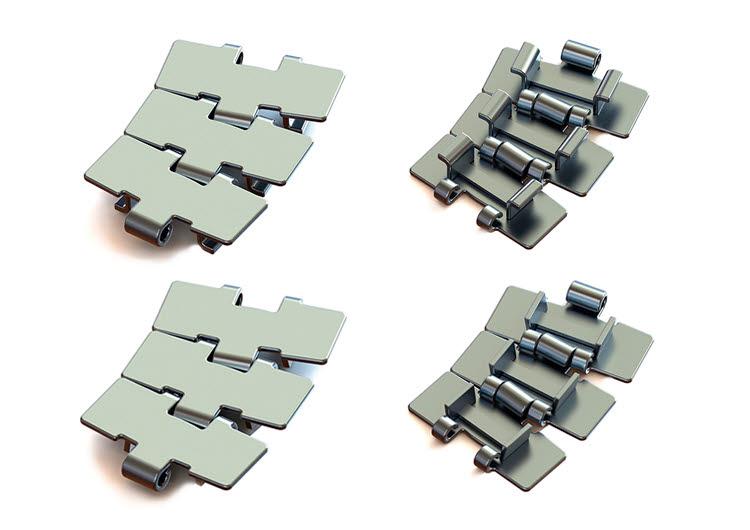

Side Flexing

Steel Chains featuring Tabs and Bevels

Suitable for:

  • Soft drink and brewery bottling plants
  • Automotive Industry
  • Material handling industries

Tab

Equipped with welded tabs to retain the chain in the curved conveyor sections.

Can be supplied with a ground surface for widths up to 190.5 mm (7.50 in).

  • uni 881 Tab is made of hardened carbon steel
  • uni 881 Tab V2 is made of ferritic stainless steel
  • uni 881 Tab V3 is made of austenitic stainless steel

Bevel

Equipped with bevels to retain the chain in the curved conveyor sections.

Can be supplied with a ground surface for widths up to 190.5 mm (7.50 in).

  • uni 881 Bevel is made of ferritic stainless steel
  • uni 881 Bevel V2 is made of austenitic stainless steel

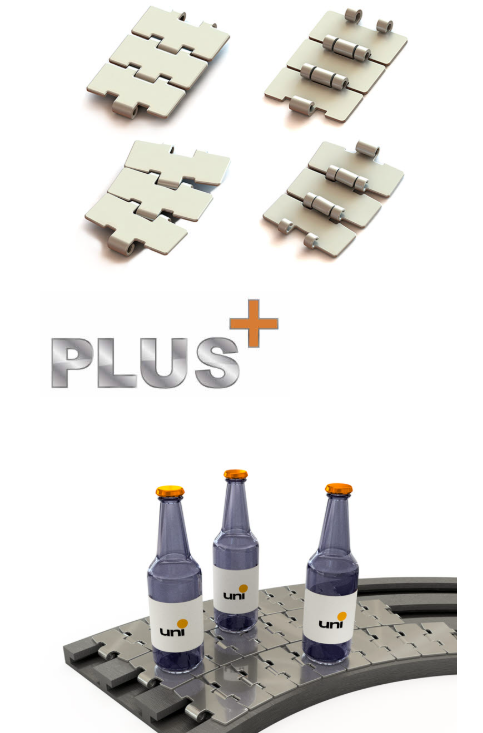

Plus+ Range

Features:

  • Harder stainless steel
  • New surface finish
  • Lower surface roughness

uni-chains Plus+ Range increases line efficiency and production speeds, lowers maintenance requirements and extends wear life. The result: a significant reduction in cost of ownership.

  • Less product ‘tripping’
  • Profiled link edges ensure improved side transfers
  • Less accumulation noise
  • More stable product handling

In addition to the chains featured here, we offer MTO (Made To Order) options.

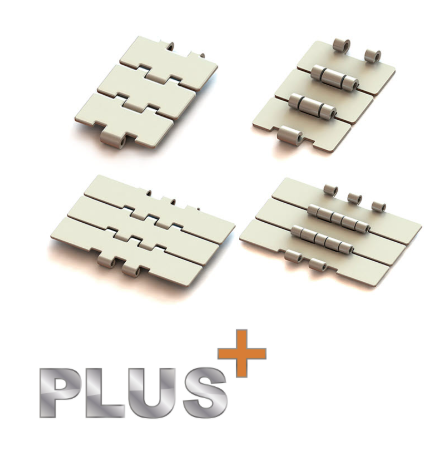

Straight Running

Single & Double Hinge Plus+ Steel Chains

Benefits:

  • Less product ‘tripping’
  • Profiled link edges ensure improved side transfers
  • Less accumulation noise
  • More stable product handling
  • Extended wear life
  • Lower cost of ownership

Single Hinge

  • uni 815 Plus+ is made of ferritic stainless steel.

Widths from 82.6 mm (3.25 in) to 190.5 mm (7.50 in).

Double Hinge

  • uni 805 Plus+ is made of ferritic stainless steel.

Width of 190.5 mm (7.50 in).

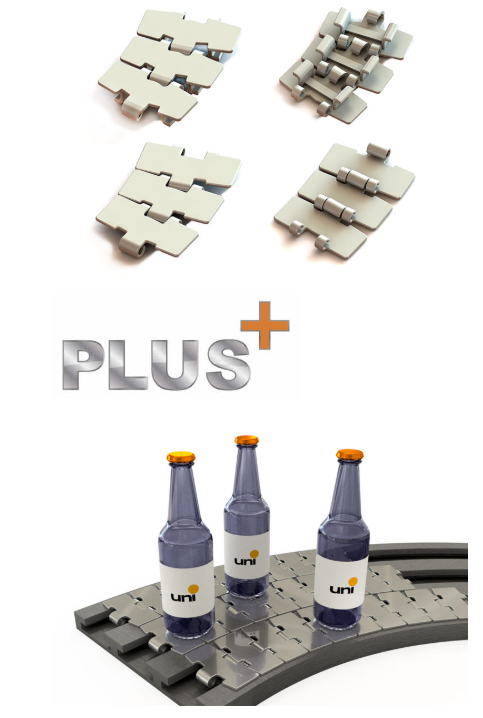

Side Flexing

Magnetic & Tab Plus+ Steel Chains

Mainly for conveying glass bottles in curves.

Benefits:

  • Less product ‘tripping’
  • Profiled link edges ensure improved side transfers
  • Less accumulation noise
  • More stable product handling
  • Extended wear life
  • Lower cost of ownership


Magnetic

Retained in the curved conveyor sections by magnets built into the curves. The advantage is that the chain can easily be taken off these sections for cleaning, replacement of wear strips etc.

  • uni 8811 Plus+ Magnetic is made of ferritic stainless steel


Tab

Equipped with welded tabs to retain the chain in the curved conveyor sections.
The hinge-eye design on uni 8811 Tab gives a more closed surface on the chain, leading to steadier conveying of products.

  • uni 8811 Plus+ Tab is made of ferritic stainless steel

Width of 82.6 mm (3.25 in).
